Output Data Format

The output data format for memtab is primarily JSON. The tool will generate a JSON file containing the memory usage information of the code being analyzed.

This JSON file can be used for further processing or visualization.

More on processing the output data format can be found on the Post Processing Data page.

Output Schema

type	object
properties
schema_version	The version of the schema.
	type	string
	const	1.2.0
symbols	An array of memory symbols.
	symbol_array
regions	An object containing memory regions.
	region_array
elf_sections	An object containing ELF sections.
	elf_sections_array
metadata	Origin-defining metadata of the ELF file that the memory table corresponds to. Things like repo, date, build ID, etc.
	metadata
project	The project name. This is used to correlate this build with a project. A project CAN have multiple builds (repositories) associated with it.
	type	string
build	The build information. Typically if running on GHA, it will be populated from there, otherwise its all unknowns. When from GHA, you can view this for supporting documentation: https://docs.github.com/en/actions/writing-workflows/choosing-what-your-workflow-does/store-information-in-variables#default-environment-variables
	build
additionalProperties	False

symbol_array

An array of memory symbols.
type	array
items	memory_symbol
minItems	1

memory_symbol

A memory symbol object.
type	object
properties
symbol	The symbol name.
	type	string
address	The memory address of the symbol.
	minimum	0
	dec_or_hex
size	The size of the symbol in bytes.
	dec_or_hex
memory_type	The type of the symbol.
	type	string
file	The file where the symbol is defined.
	type	string
commit	The commit sha where the symbol is defined.
	type	string
	pattern	^[a-f0-9]{40}$|^unknown$
repo	The repository where the symbol is defined.
	type	string
line	The line number in the file where the symbol is defined.
	type	integer
	minimum	0
categories	The category(categories) of the symbol.
	type	object
	patternProperties
	^[0-9]+$	The category of the symbol.
		type	string
region	The memory region of the symbol.
	type	string
	enum	RAM, Code, Flash, unknown
subregion	The subregion of the symbol.
	type	string
elf_section	The elf section of the symbol.
	type	string
assigned_size	The assigned size of the symbol. If its greater than size, there is some unused memory above. If it is less than size, there is shared memory with another adjacent symbol.
	type	integer
	minimum	0
additionalProperties	False

dec_or_hex

oneOf	type	string
	pattern	^(0x[0-9a-fA-F]+|[0-9]+)$
	type	integer
	minimum	0

region_array

An array of memory regions.
type	array
items	memory_region
minItems	1

memory_region

A memory region. Note these correlate to regions defined in the input config, NOT ELF regions.
type	object
properties
name	The name of the memory region. Correlates to the region names from the input config
	type	string
start	The start address of the memory region.
	dec_or_hex
end	The end address of the memory region.
	dec_or_hex
size	The size of the memory region.
	dec_or_hex
region	The memory region type.
	type	string
	enum	RAM, Code, Flash
flags	The flags associated with the region, if any
	type	string
region_type	The memory region type.
	type	string
	enum	RAM, Code, Flash
spare	the amount of spare memory left in the region.
	dec_or_hex
additionalProperties	False

metadata

type	object
properties
filename	The filename of the ELF file that the memory table corresponds to.
	anyOf	Unix/Linux path format for ELF files
		type	string
		pattern	^[a-zA-Z0-9\-_./]*[a-zA-Z0-9\-_]+\.elf$
		Windows absolute path format for ELF files
		type	string
		pattern	^[A-Za-z]:[a-zA-Z0-9\-_.\\]*[a-zA-Z0-9\-_]+\.elf$
size	The size of the ELF file that the memory table corresponds to.
	dec_or_hex
md5	The md5 hash of the ELF file that the memory table corresponds to.
	type	string
	pattern	^[a-f0-9]{32}$
memtab_version	The version of the memtab python package that generated this file.
	type	string
	pattern	^[0-9]+\.[0-9]+\.[0-9]+$
timestamp	The timestamp of the build that produced this memory table. If using GHA, this corresponds to “created_at” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
	type	string
	format	date-time
build	type	object
	properties
	commit	The commit hash of the build that produced this memory table. If using GHA, this corresponds to “head_sha” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	string
	repo	The repository name of the build that produced this memory table. If using GHA, this corresponds to “repository.name” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	string
	owner	The owner of the repository that produced this memory table. If using GHA, this corresponds to “repository.owner.login” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	string
	id	The build ID of the build that produced this memory table. If using GHA, this corresponds to “id” https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	integer
	name	The name of the build that produced this memory table. If using GHA, this corresponds to “name” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	string
	url	The URL of the build that produced this memory table. If using GHA, this corresponds to “html_url” from https://docs.github.com/en/rest/actions/workflow-runs?apiVersion=2022-11-28#get-a-workflow-run
		type	string
	additionalProperties	False
additionalProperties	False

build

properties
build_id	type	integer
attempt_id	starts at 1 if run in GitHub, increments for each retry. If not run in GitHub Actions, this is 0.
	type	integer
	minimum	0
commit_sha	The commit SHA of the build.
	type	string
	pattern	^[a-f0-9]{40}$
repository_name	type	string
branch	type	string
type	type	string
owner	type	string
repository_url	type	string
name	type	string
additionalProperties	False

elf_sections_array

An array of ELF sections. These is similar to the regions, but is an ELF standard definition, rather than a memtab definition.
type	array
items	elf_section
minItems	1

elf_section

An ELF section object. This can be thought of as the sections listed in readelf -SW
type	object
properties
name	The name of the ELF section.
	type	string
address	The address of the ELF section.
	dec_or_hex
size	The size of the ELF section.
	dec_or_hex
flags	The flags of the ELF section.
	type	string
calculated_symbol_size	The calculated size of all the symbols in the ELF section.
	type	integer
	minimum	0
type	The type of the ELF section.
	type	string
	enum	PROGBITS, NOBITS, DYNAMIC, FINI_ARRAY, INIT_ARRAY, REL, VERNEED, VERSYM, GNU_HASH, NOTE, RELA, ARM_EXIDX, ARM_ATTRIBUTES
unused	The amount of unused space at the start of the ELF section. It can be zero if the first symbol is right at the start of the section.
	dec_or_hex
additionalProperties	False

Size vs. Assigned Size

You will notice in the output that there are two different size metrics reported: size and assigned_size.

• size refers to the total memory usage of the object, including any memory “reused” or “shared” with another symbol.

• assigned_size is the memory unique to the object itself.

This distinction is important for understanding the true memory footprint of your data structures and can help identify potential optimizations.

There are three distinct scenarios when comparing size to assigned_size:

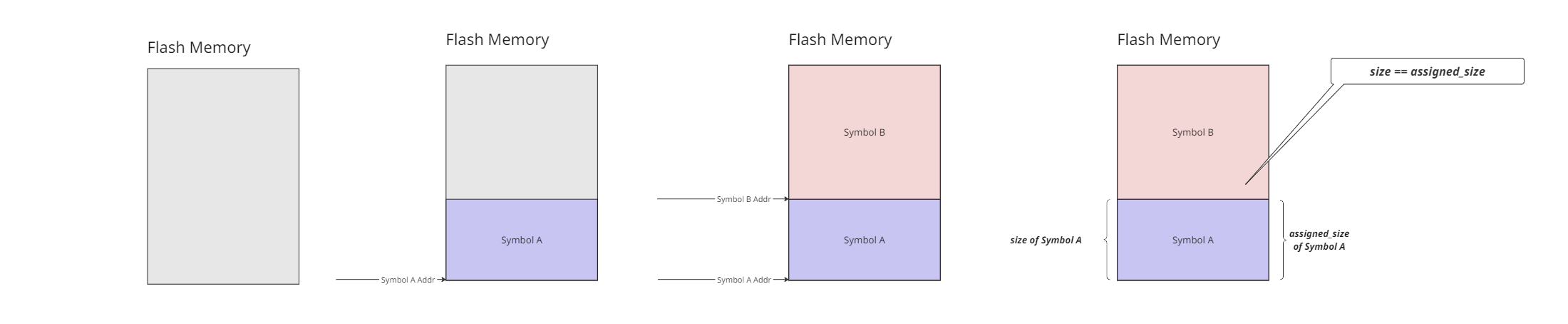

1. size == assigned_size

   1. In this scenario, the object does not share/reuse any code, and it is immediately adjacent to the next symbol in memory.

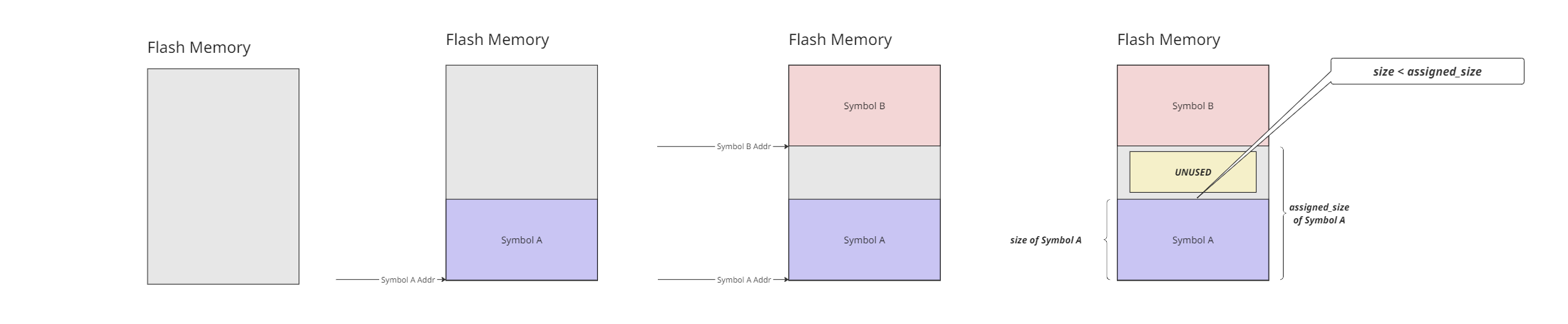

2. size < assigned_size

   1. In this scenario, there is some unused memory between this symbol and the next in memory, and thus that padding is allocated to this symbol. See the Wikipedia page on Data Structure Alignment for more information.

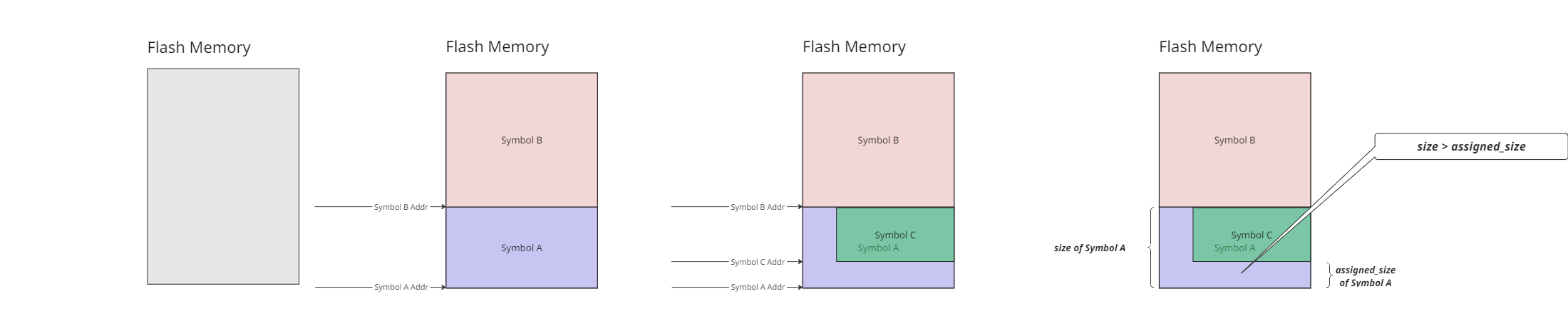

3. size > assigned_size

   1. In this scenario, the object shares memory with another object, leading to a larger reported size.



With these definitions, the design intent is that the sum of assigned_size should add up to the available size of flash memory.
